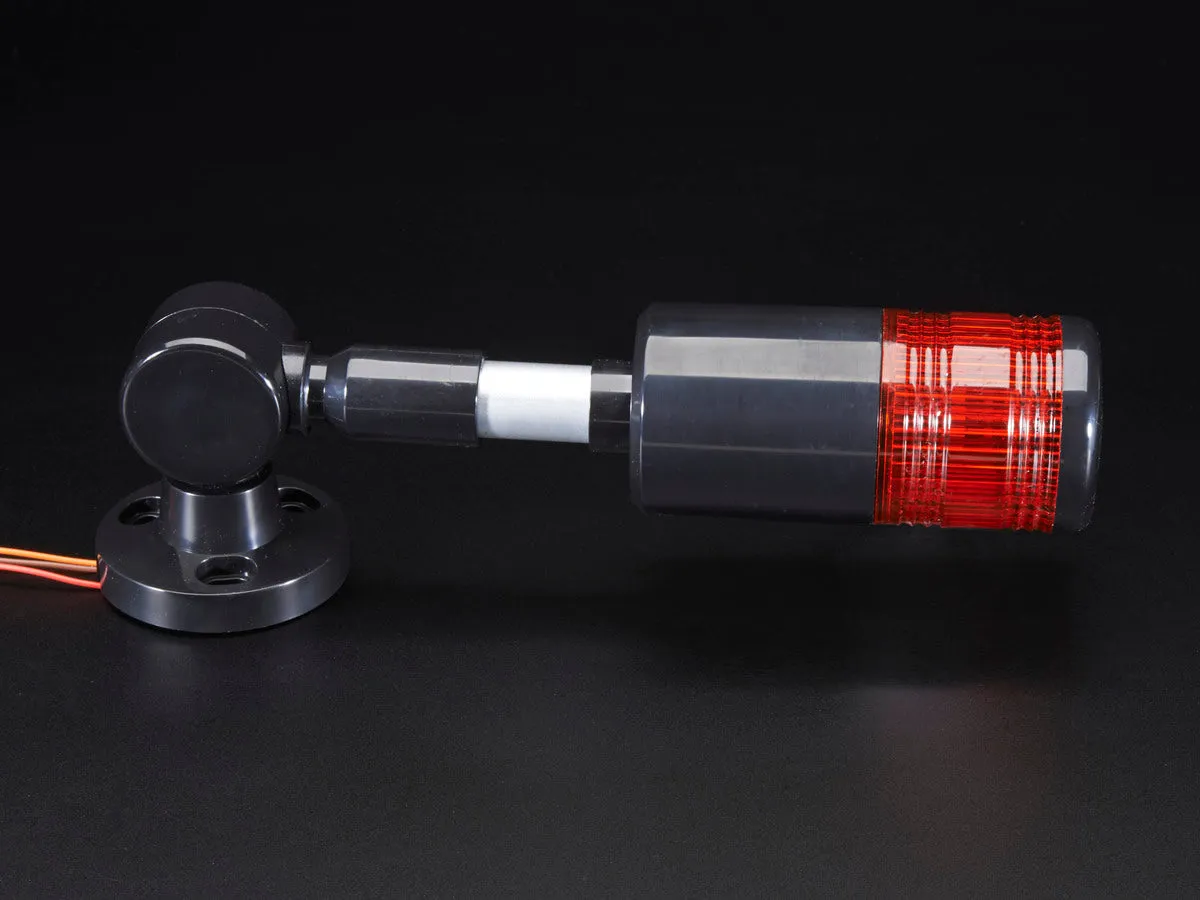

THE REACTOR'S MELTING DOWN! GRAB THE FUEL CORE, JENNA, AND EVACUATE THE COMMAND CENTER! With this flexible Red Alert Light you can monitor the status of a project, machine, or even if the bathroom is occupied!
We got some really nice tower lights here, first up they come in slimming Adafruit black, they're easy to attach with mounting holes, and you can rotate the light mount so it can be horizontal, vertical or any angle in between (180 rotation).
This is the one color version - Red - but we also have a in the store if you want more versatility!

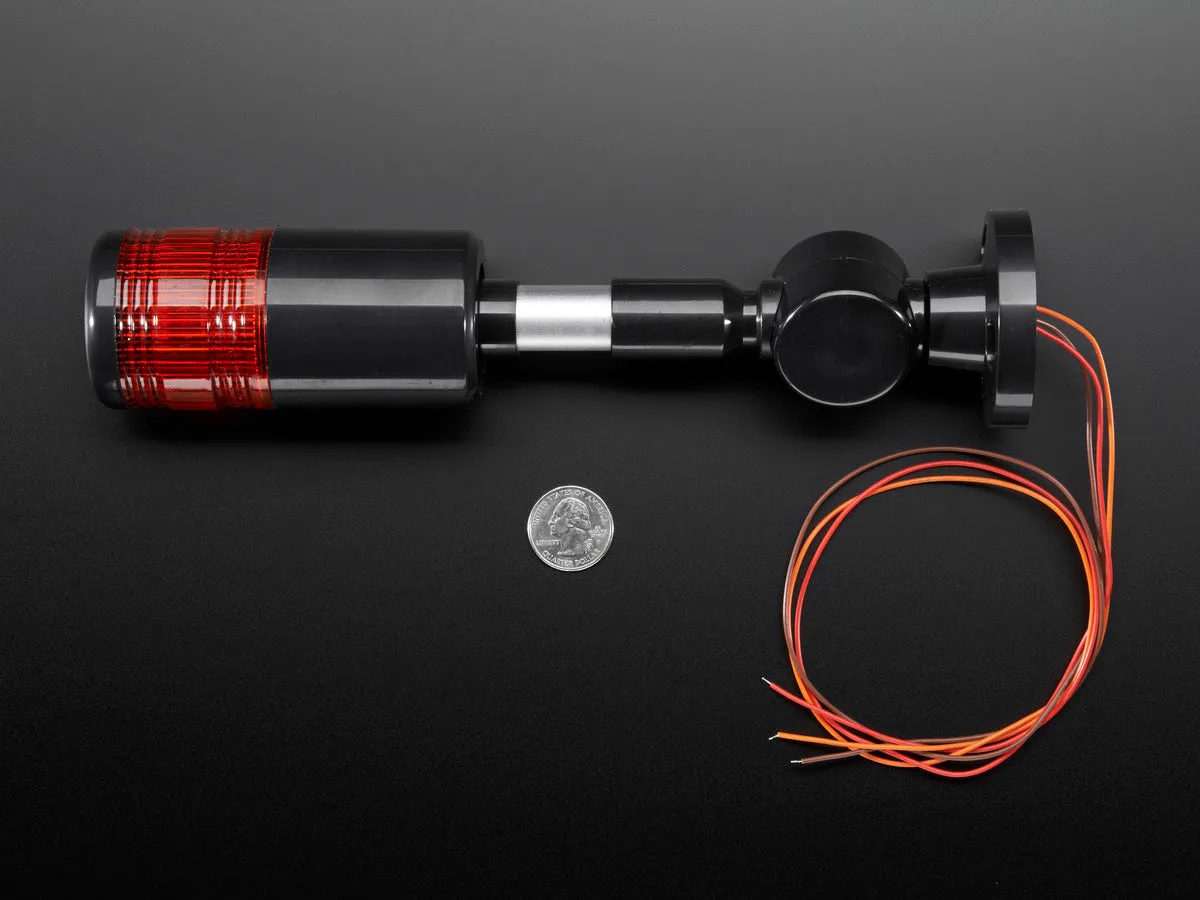

Alert tower lights are really easy to use. The brown wire is the common 12V power line, then the other wires are connected to ground to activate the LED light or buzzer. The red wire controls the red LED light and the orange wire is what controls the buzzer which will sound continuously when the wire is grounded.
You will need a 12VDC power supply to get it going, . If you are using this with a 3V or 5V microcontroller or computer, use or to sink current from each wire. , except its only about 50mA per segment. If you desperately need something that can run off of 5V .
Note: Shipping weight reflects .
Technical Details
- Range of motion: 180°
- Height: 252mm / 9.9"
- Diameter of light: 50mm / 1.97"
- Weight: 162g
