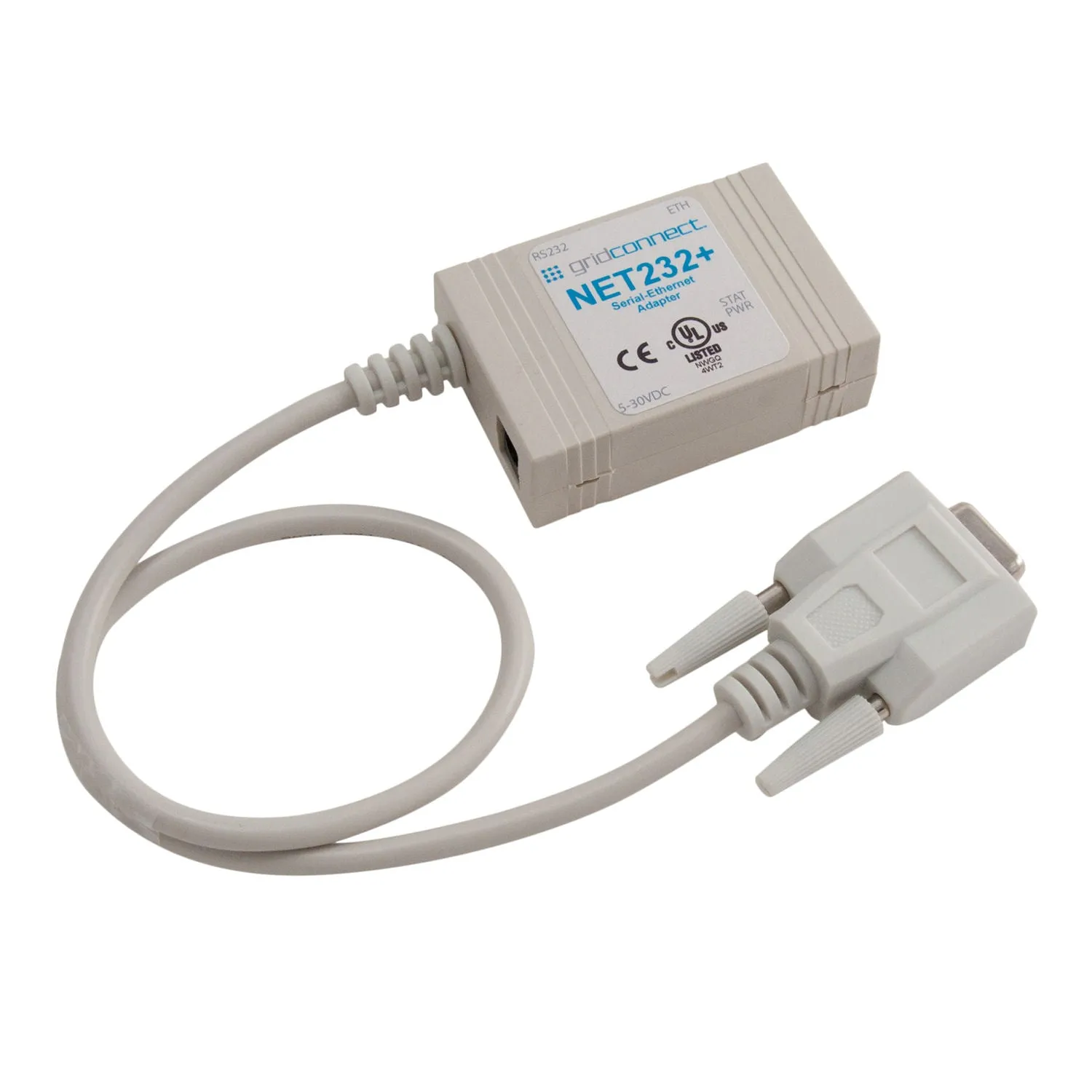

The NET232 is the next generation of advanced serial device servers from Grid Connect. The new “PLUS” provides a simple solution enabling RS232 serial devices to connect to the network via Ethernet and TCP/IP (RJ45). Use the NET232 to extend the life and utility of existing RS232 serial devices.

Fully Featured Device Server

The NET232 is a fully featured device server supporting multiple TCP connections (up to 4 TCP or a mixture of TCP and UDP), DNS, email serial triggers, email authentication, and 256-bit AES encryption. Serial data rates up to 921K and auto-sensing 10/100Mbps Ethernet are supported.

Included Features

• an industrial grade temperature range
• detailed LED status indicators
• factory reset push button

Refer to the  for a detailed list of the NET232 enhancements

The NET232 is simple to configure using the provided installation software and web page. Just connect the adapter to a serial device and to the local Ethernet network and run the free software to find and set up the device. Use the NET232  in pairs to “tunnel” serial data over the internet, or as a single device connected to a serial device on one-end and to a “virtual COM port” on a PC on the other end. This is accomplished using the free virtual COM port software.

 The NET232 is backward compatible with the NET232.

Order Summary
