Product Details
＋

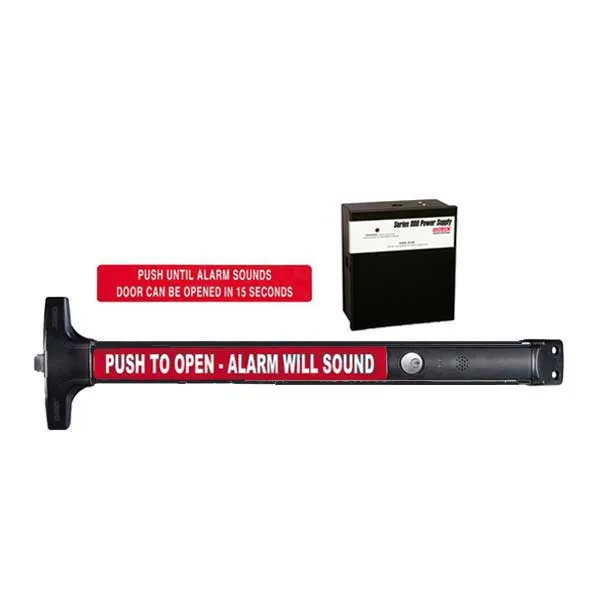

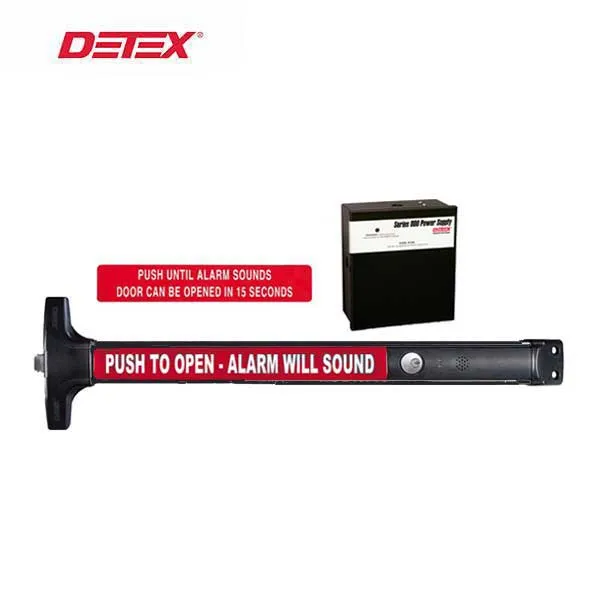

The Detex F-V40-EE Fire Rated Delayed Egress Rim Exit Device The EE, designed for primary and secondary exits, provides a secure 15-second delay and a 100 decibel alarm when someone attempts to exit. This 15-second delay allows management time to respond before someone exits and the alarm deters the exit from occurring. Per life safety requirements, the EE must be provided with a fire alarm input, thus providing a system override during a fire emergency. The EE provides security while meeting all life safety concerns, offering an exceptional value.
Features
- Detex V40 EE, Delayed Egress Rim Exit Device
- Fire alarm input can be connected at power supply
- Fire Rated
- Non-handed, field sizeable
- 36 – Fits 36″ Door Width
- Powered by a 24VDC filtered and regulated power supply
- 9V battery provides alarm function only in case of power failure
- Fasteners: Machine and Self-Drilling Screws
- 1/8 turn Cylinder Dogging (CD) Standard
- Tamper resistant housing
- Angled end cap deflects damage away from device
- Visual and audible arming indicators
- 100 Decibel alarm
- 10 Year Mechanical/3 Year Electrical – Limited Manufacturer’s Warranty
Specifications
| Length | 32-7/8" |
| Door Width | 36" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Single Door Stile | Fits 3-1/2” minimum stile doors with 99 surface strike |
| Power | Constant 24VDC of filtered and regulated voltage at a rated load of 1A, 9V battery provides alarm function only in case of power failure |
| Dogging | No cylinder Dogging, Cylinder override for alarm |
| Bolt | Stainless steel, 3/4" deadlocking Pullman-type latch bolt |
| Alarm | 100 Decibels |
| arming | 15 second arming. Silent arming (3 chirps when arming) |
| Finish | 711 (Black) |
| Fire Rating | 3 Hour UL Listed |
| Warranty | 10 Year Mechanical 3 Year Electrical Limited Manufacturer Warranty |
